Steel Gable Trusses

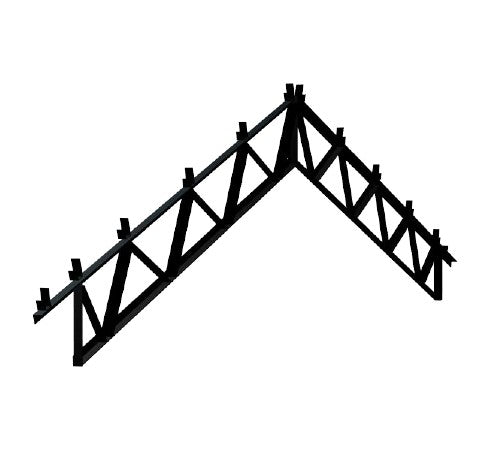

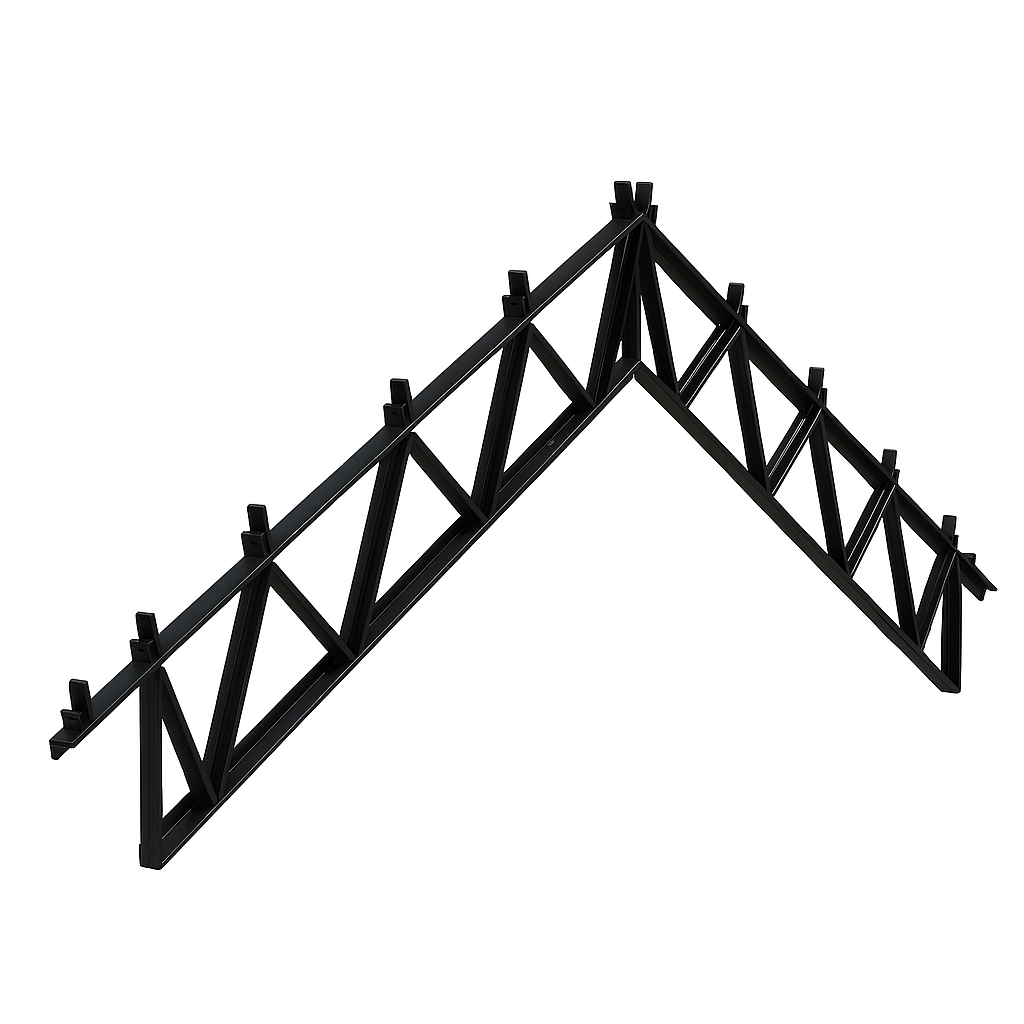

ANGLE IRON TRUSSES
Our angle iron steel trusses are manufactured by certified welders and are engineered stamped in Alabama, Tennessee, Kentucky, North Carolina and Georgia. They feature a 90-mph wind load (IBC 2018 & 2021),105-mph design wind speed rating, a 20 PSF roof live load, and a 15 PSF ground snow load at 10-foot centers (2018 & 2021 IBC). We use either 1-1/2" x 1-1/2" or 2"x2" angle for both the top and bottom chords depending on the truss span with 1-1/4" x 1-1/4" angle for webbing.
- 4:12 Pitch Gable Trusses
- Designed to be spaced 10' apart
- Hardware kit included
- 6x6 Structural Post Required
- Contact us for additional sizes and configurations!
***Offload Equipment Required On-Site to Unload Trusses***
***Orders Requiring More Than (11) Trusses May Require Speaking to a Representative & Alternate Shipping Options***
Pickup currently not available
